in-Dexable Combination & Double Squares

The combination square was invented in 1878 and has been copied countless times over the last 140+ years. But until now, no one has done much to make the combination square better.  Woodpeckers product development team wanted more than just a “me too” product. They built features into their in-DEXABLE Combination Squares you won’t find in any other combination square at any price. Features like laser-accurate scribing guides, positive indexing at every full inch, a sliding head support and precise, laser-engraved scales. After they had the standard combination square designed, Woodpeckers built the same features into a larger size and two sizes of double squares, too.

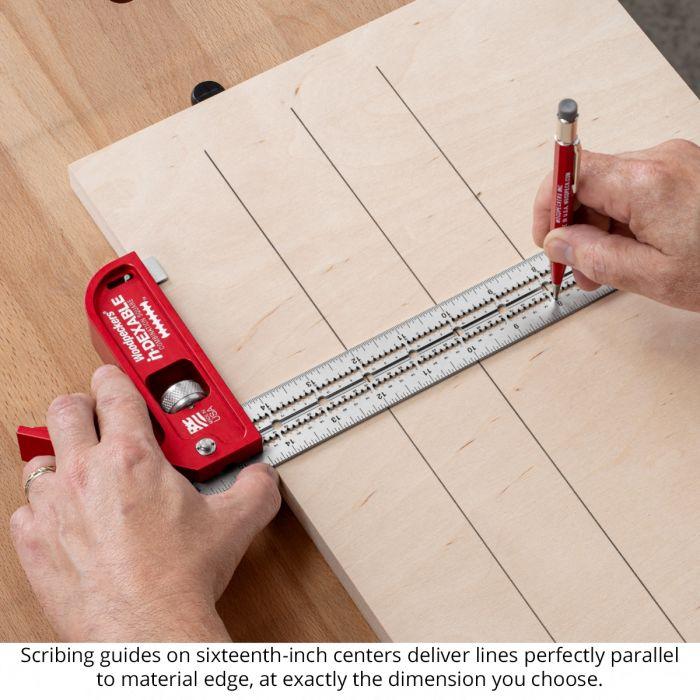

The feature Woodpeckers thinks you’ll find most useful on these new squares is the laser-cut scribing guides cut every sixteenth-inch along the blade. The guides are just the right size to capture a pencil tip for highly accurate parallel scribing. But where’s the “zero point” for the scribing guides? How do you get a true starting point with a head that moves? Just depress the spring-loaded index pin and lock the head at any full inch…now your scribing guides are dialed in and ready for accurate parallel marking.

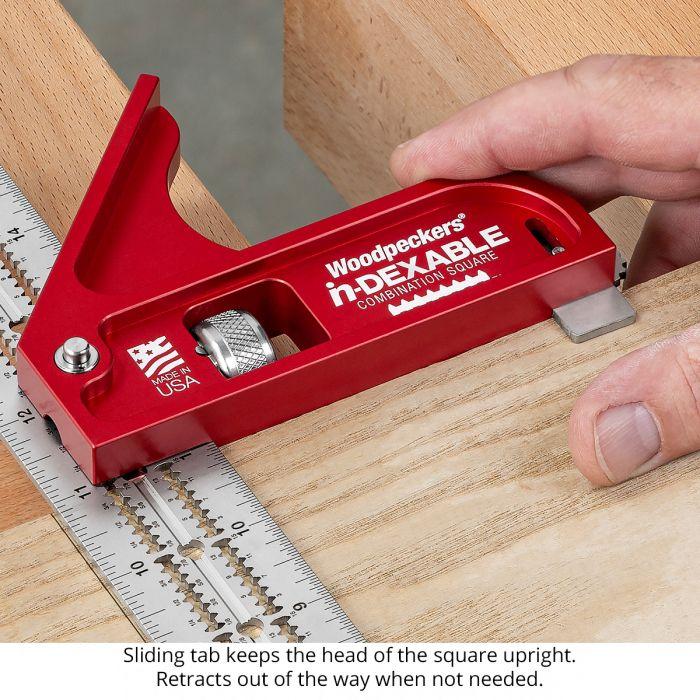

For years one of their customers’ favorite features of the fixed-head squares has been the shoulder that keeps the square in position on the edge of your stock. They’ve added that to their adjustable squares, too. Just slide the head support out to keep the head of your square perfectly positioned without needing three hands. If it’s in the way, it just slides back into the head and doesn’t interfere with the alignment of the square in any way.

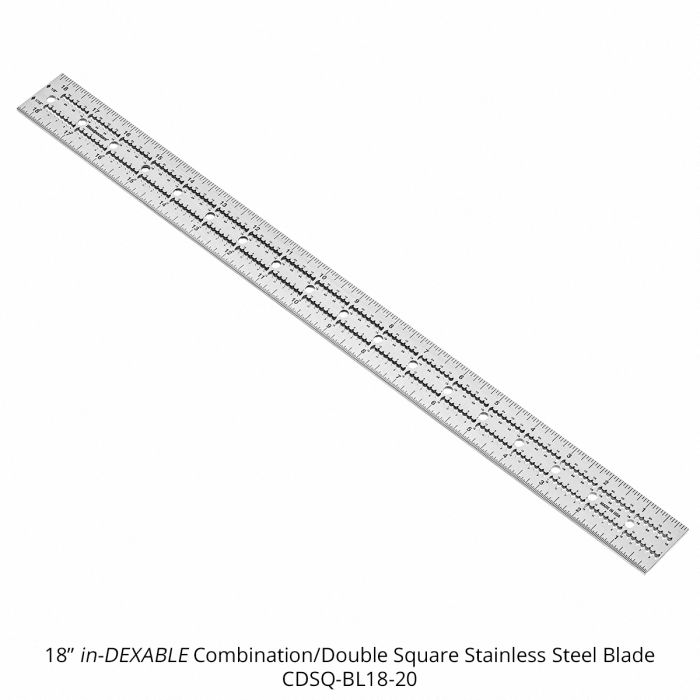

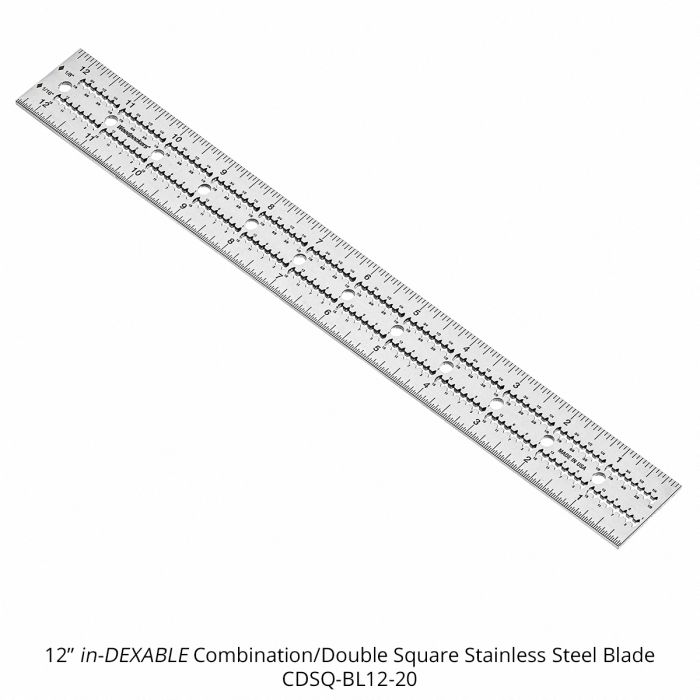

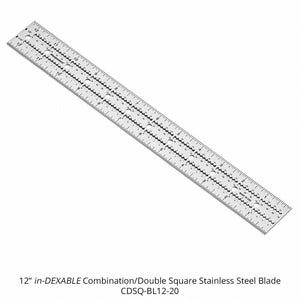

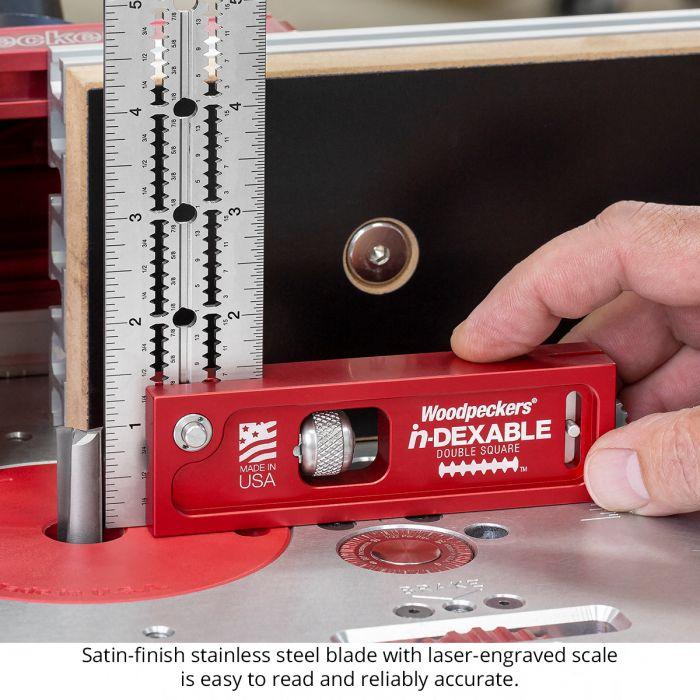

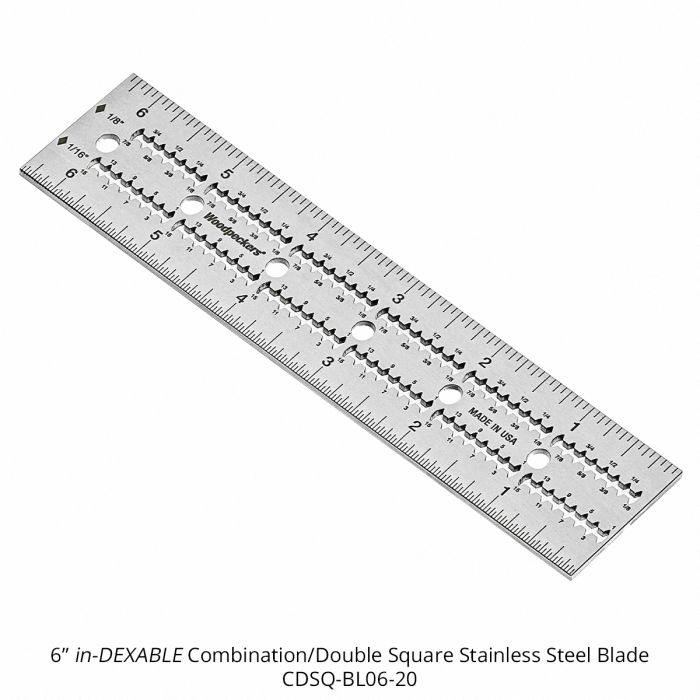

The scales engraved on the blades of the squares have 16ths on one edge and 32nds on the other. All scales are laser engraved to a tolerance of .004" total accumulated error over the entire length of the blade. That’s about the thickness of a human hair spread over the 6-, 12- or 18-inch blade length.  The stainless-steel blades go through a multi-step finishing process to give them a lustrous satin finish, and the deeply engraved graduations are crisp and dark and will never wear off.

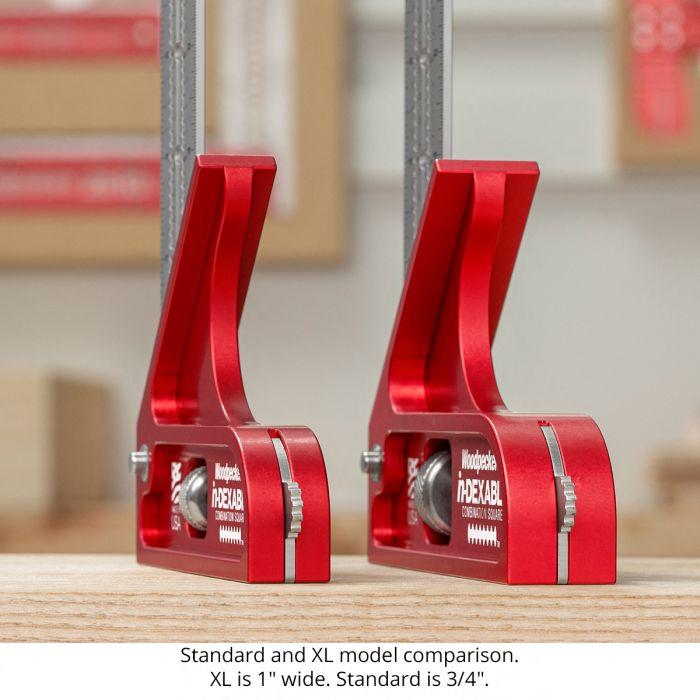

The XL Combination Square and Double Square have heads that are a full inch thick. With just under 1/2" beneath the blade, you’ll never worry about rounded-over edges changing your readings. The squares have a firm footing when standing vertical for cabinet checks or machinery adjustment, too. Machined from aircraft grade aluminum, the heads weigh less than the cast iron heads found on other brands of adjustable squares, even though Woodpeckers are both thicker and longer along both reference edges. The bright “Woodpeckers Red” anodized finish makes the squares easy to find in your shop and they’ll never rust, regardless of your working environment.

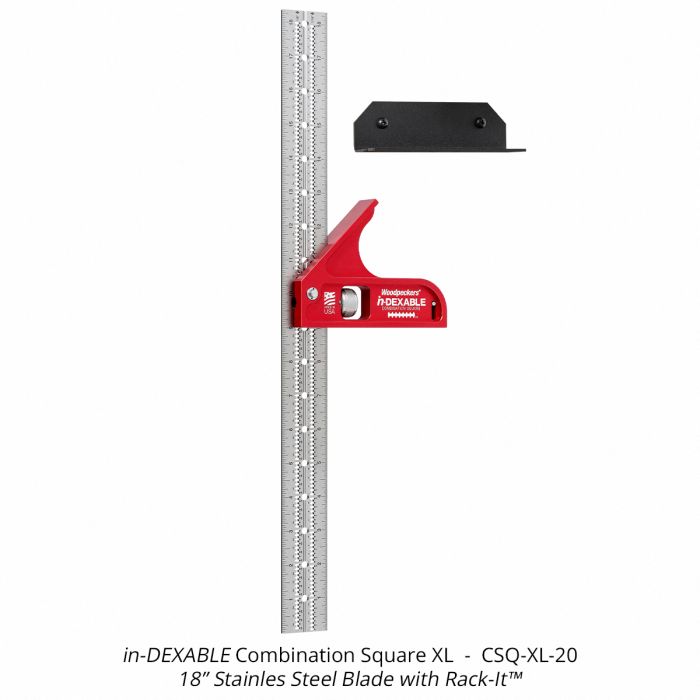

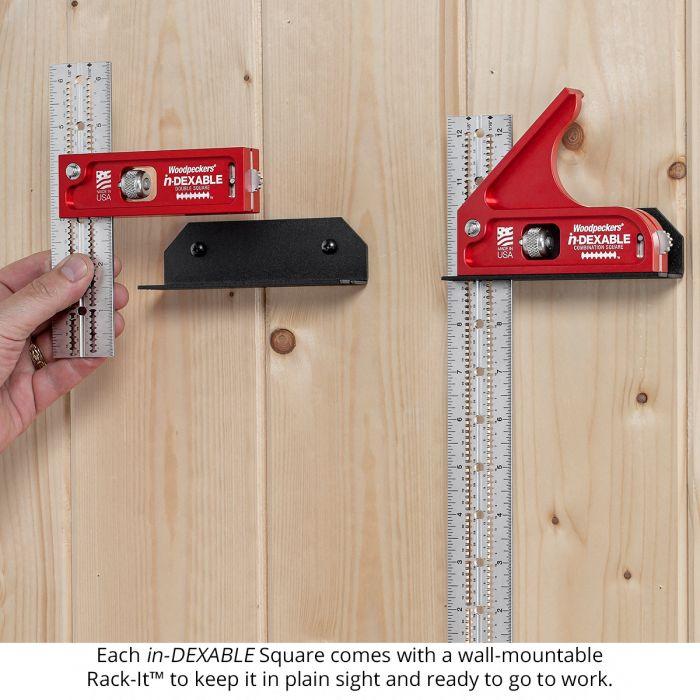

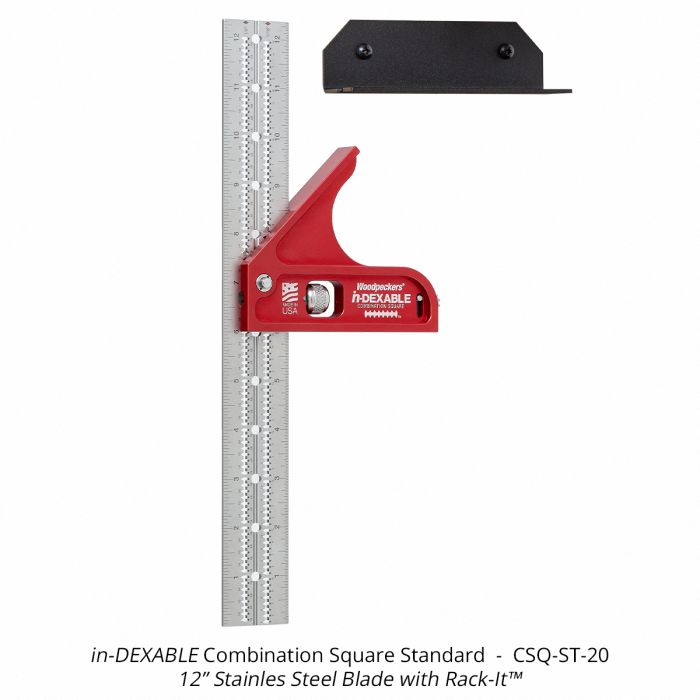

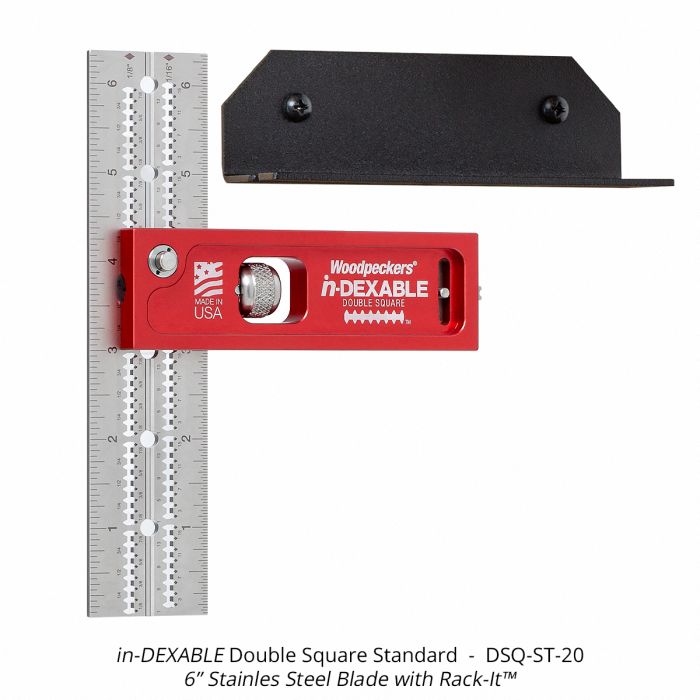

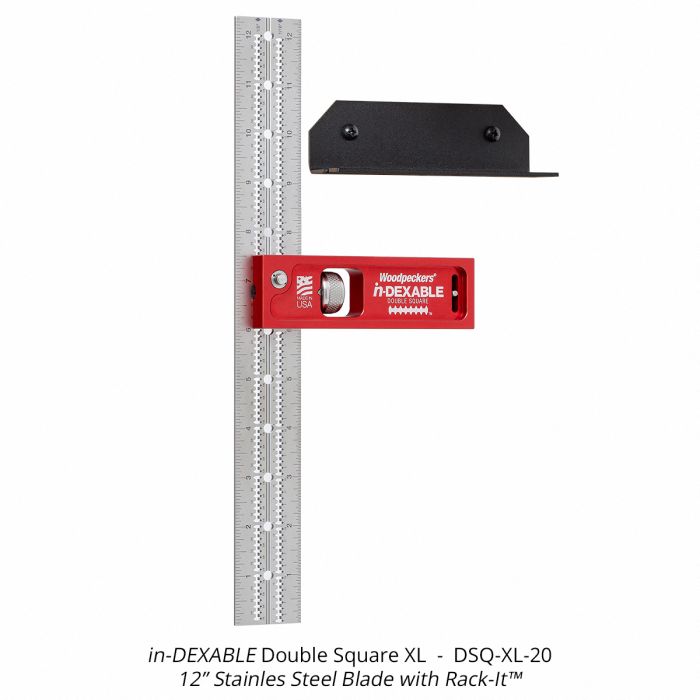

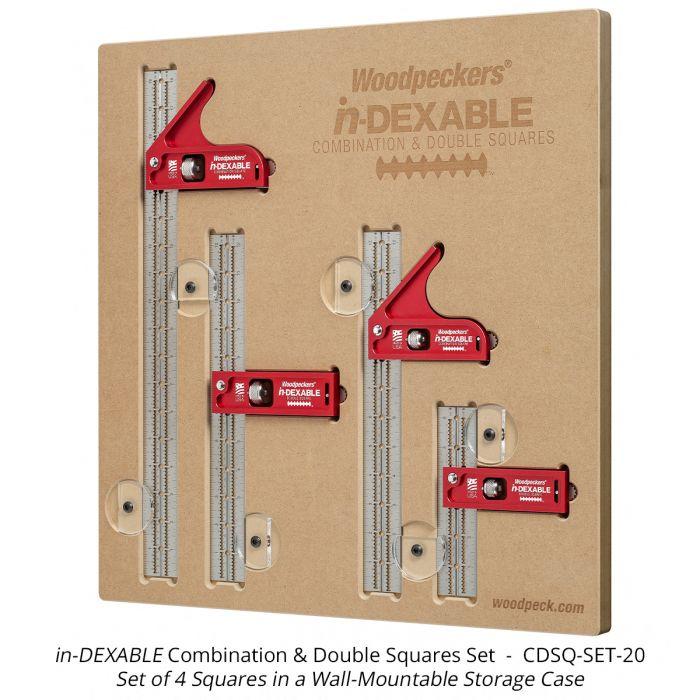

The XL Combination Square comes equipped with an 18" blade and the XL Double Square comes with a 12" blade. The standard Combination Square comes with a 12" blade and the standard Double Square comes with a 6" blade. Individual squares come with a wall-mountable Rack-It™ to keep your square protected, but still always in plain sight. The complete set of four squares comes with a wall-mountable MDF case with a custom-fit recess machined for each square.

Like all Woodpeckers products, the in-DEXABLE Combination Squares and Double Squares are precisely machined and carefully inspected in their Strongsville, Ohio factory (just south of Cleveland).
