Joiners Saddle Square - 2023 - OneTime Tool

Product Description

This OneTIME tool has expired and can no longer be purchased.

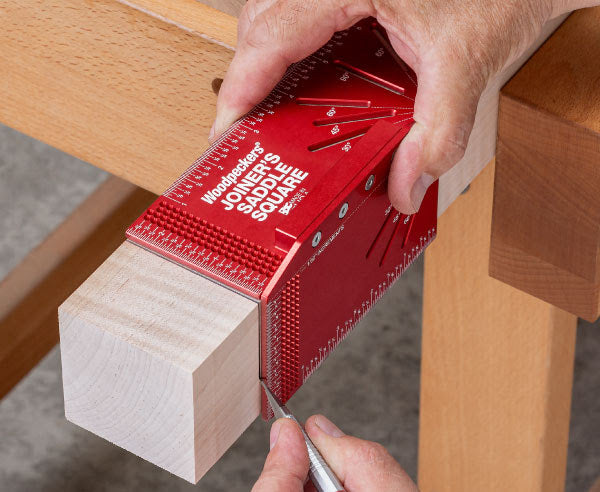

When you’re laying out furniture and cabinet joinery you need a tool that’s reliably accurate and convenient to use. Woodpeckers newest OneTIME Tool, the Joiner’s Saddle Square, is the perfect companion for your joinery projects. Two CNC-machined aluminum plates are joined at a right angle. This “wrap-around” design gives you two valuable features. On one end you can mark both the face and edge of a board around the corner. On the other you can continue the short side of a 45° miter around the corner just as precisely. But we didn’t stop there. Woodpeckers machined scribing guides into both sides and included 30°, 45°, 60° and 90° reference guides. There simply isn’t a more complete compact layout tool on the market.

The more common 1-piece extruded squares that look similar typically can’t deliver the level of perpendicularity necessary for serious woodworking. By machining each side of the Joiner’s Saddle Square from a billet of solid aluminum and joining them with an extended boss, we’re able to hold very tight tolerances for both flatness and perpendicularity of the two sides. This tool delivers the level of precision necessary for accurate joinery.

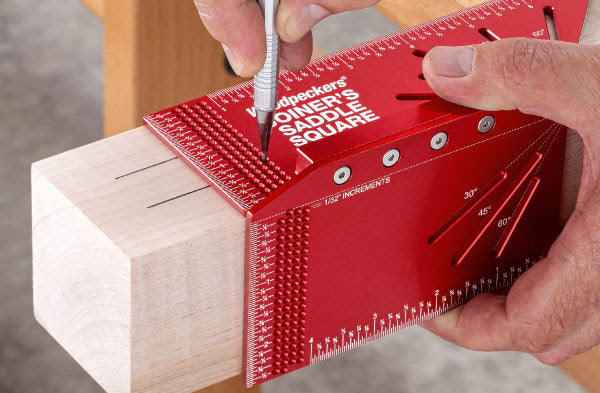

Let’s take a closer look at the scribing guides. A staggered array of 1mm holes on 1/32" centers (1mm centers on the metric version) perfectly guides a mechanical pencil for lines parallel to the edge of your board. Woodpeckers has built that feature into many of its tools, but there’s something different on the Joiner’s Saddle Square. Its unique right-angle design let us align one group from right to left and another left to right…no more trying to read upside down for half your scribing jobs.

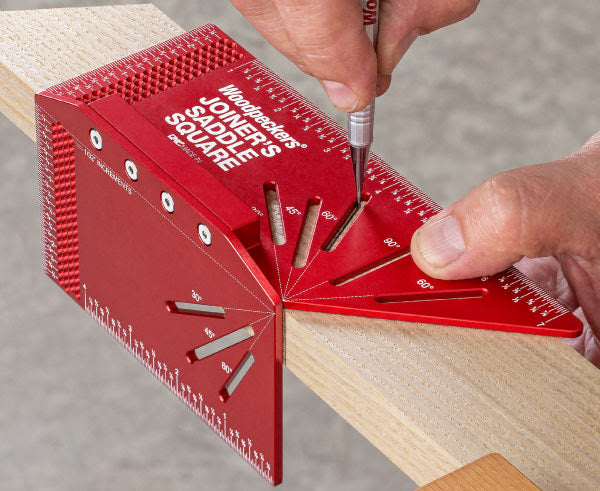

You’ll find most any standard angle layout you need, since you have the 45° milled edge and milled slots at 30°, 45°, 60° and 90°. All angles originate from the intersection point of the two sides, making it easy to lay out complementary angles. The sides of the Joiner’s Saddle Square are 2-1/2" deep. The 45° side is 7" long and the square side is 5" long.

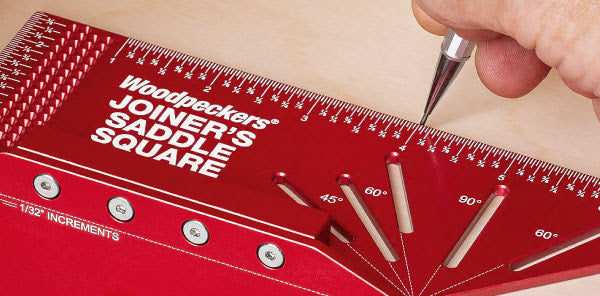

The outside edges have laser-engraved scales graduated in 32nds (mm for the metric version). For your convenience, one edge is laid out from left to right and the other goes from right to left. The square end is also graduated, reading from the corner of the square out in both directions.

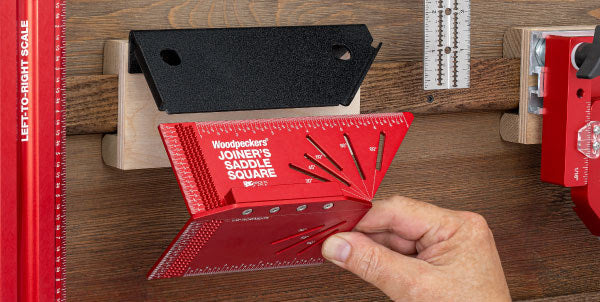

Before they’re joined together, each side is anodized in our signature “Woodpeckers Red” color and laser engraved. The screws that join the two sides together are stainless. The result is a tool that is immensely functional, a pleasure to work with and attractive on your bench or hanging on its wall-mountable Rack-It™.

Like all Woodpeckers OneTIME Tools, the Joiner’s Saddle Square is precisely machined and carefully inspected in our Strongsville, Ohio facility in the Cleveland suburbs. As a OneTIME Tool, the Joiner’s Saddle Square is built to order only. The deadline to order is October 2nd, 2023. Once this deadline passes, we’ll get production started on your new tool. Delivery is estimated for January 2024.

OneTIME Tools are made to order, after the deadline passes there will be NO refunds.

Let Woodpeckers know. If there's enough demand, they may re-run a OneTIME Tool. If you're interested, please click here to leave your comments. Thanks.



Video

Options
  • Joiners Saddle Square - Metric ($159.95)
  • Joiners Saddle Square - Imperial ($159.95)
