Saddle T-Square
Whether you have 40 years of woodworking experience or 40 hours, those tiny lines on rules and tapes can be difficult to see and even more difficult to transfer accurately to your work. Woodpeckers Saddle T-Squares improve your lay out accuracy with three unique features – a series of holes to guide your pencil, an edge that wraps around your work, and a high-contrast laser-engraved scale. These three great features are packed into tools that easily drop in your shop apron or carpenter jeans pocket, so you’re always ready for precision layout work.
WOODPECKERS SADDLE T-SQUARES

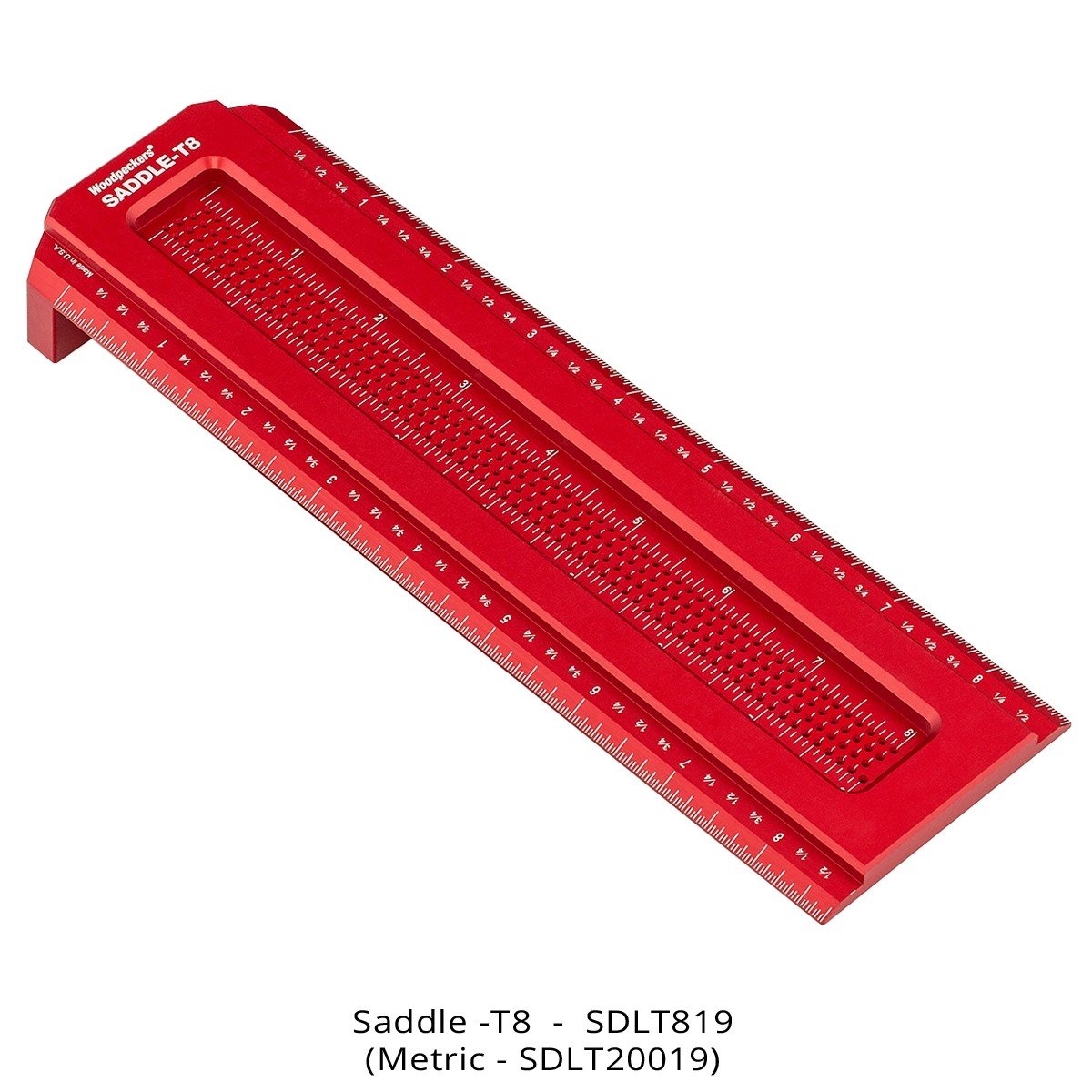

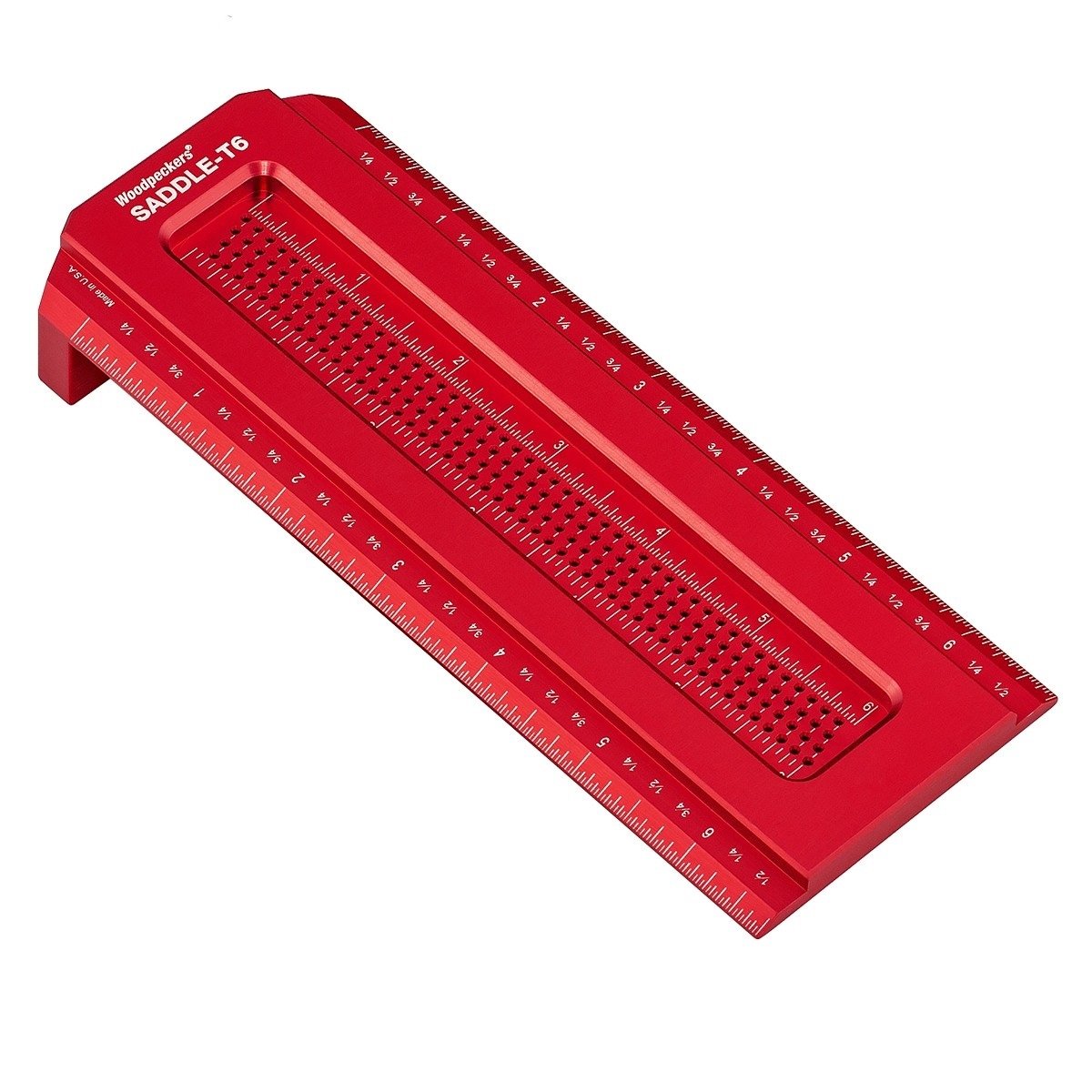

Precision Parallel Scribing. The first thing people notice when they see our Saddle T-Squares is the array of holes perforating the center of the blade. The holes are perfectly spaced 1/32" apart and are sized just right for the tip of a mechanical pencil. Laying down a line parallel to the edge of your stock is as simple as finding the hole you want, dropping in a pencil and sliding the Saddle T along the edge.
Wrap Around Marking. Instead of struggling to re-align a square to transfer a mark from the face to the edge, with the Saddle T-Square you can do it in one fluid motion. The 3/4" deep reference edge is machined perfectly in line with the scale edge.
Beveled Edges and High Contrast. When you do need the scale, you’ll never find one easier to read than the scale on the Saddle T-Square. The aluminum body is anodized in familiar “Woodpeckers Red” and the laser engraved scale is bright white. It’s much easier to see than most other rules, even in poor lighting conditions. Woodpeckers also beveled the edges 30 degrees. That puts the calibrations right down on top of your work, eliminating parallax viewing error. Prefer Metric? Woodpeckers makes the same tool with the pencil-tip guide holes on a 1mm grid and metric scales on the edges.
Designed and Built to Last. Woodpeckers Saddle T-Squares are milled from one solid block of aircraft grade aluminum on their state-of-the-art CNC milling centers. Every edge is chamfered, making the tool comfortable to work with and easy to hold. Even the tiny pencil holes have beveled edges to guide your pencil tip in place. The red anodized surface not only looks great, it reduces friction with your work.
Choose Your Size or Get the Whole Set. Woodpeckers make the Saddle T-Squares in 4", 6", 8" and 12" lengths and metric equivalents. Each size is available individually, or cover all your layout needs with a full set. The set includes all four sizes, in your choice of inch or metric scales and their brand new wall mountable Saddle-T Rack-it.
This former OneTIME Tool design is joining Woodpeckers permanent product line-up. Like all Woodpeckers products, the Saddle T-Squares are precisely machined and carefully inspected in their Strongsville, Ohio, factory.
